VSDISPLAY 10.4 Inch IPS 1024x768 LCD Screen 600Nits Display Panel with Audio LCD Controller Board VS-TY2660H-V661

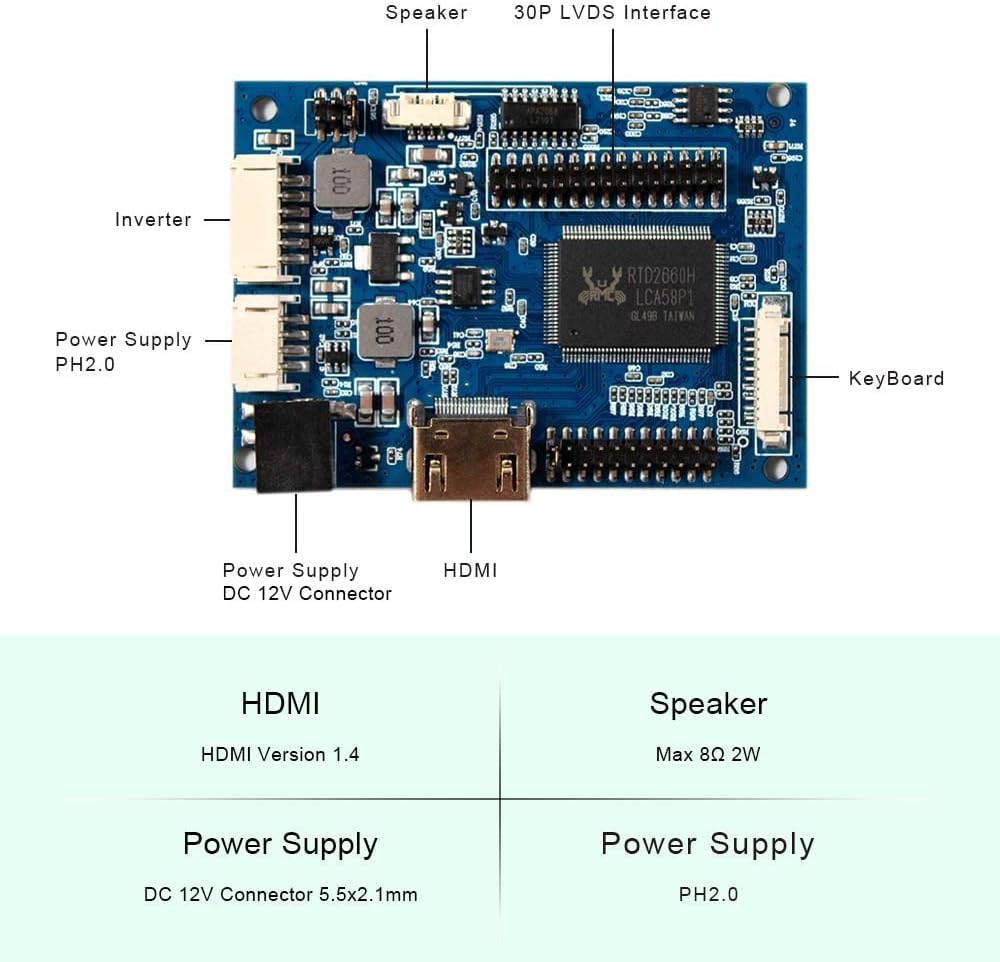

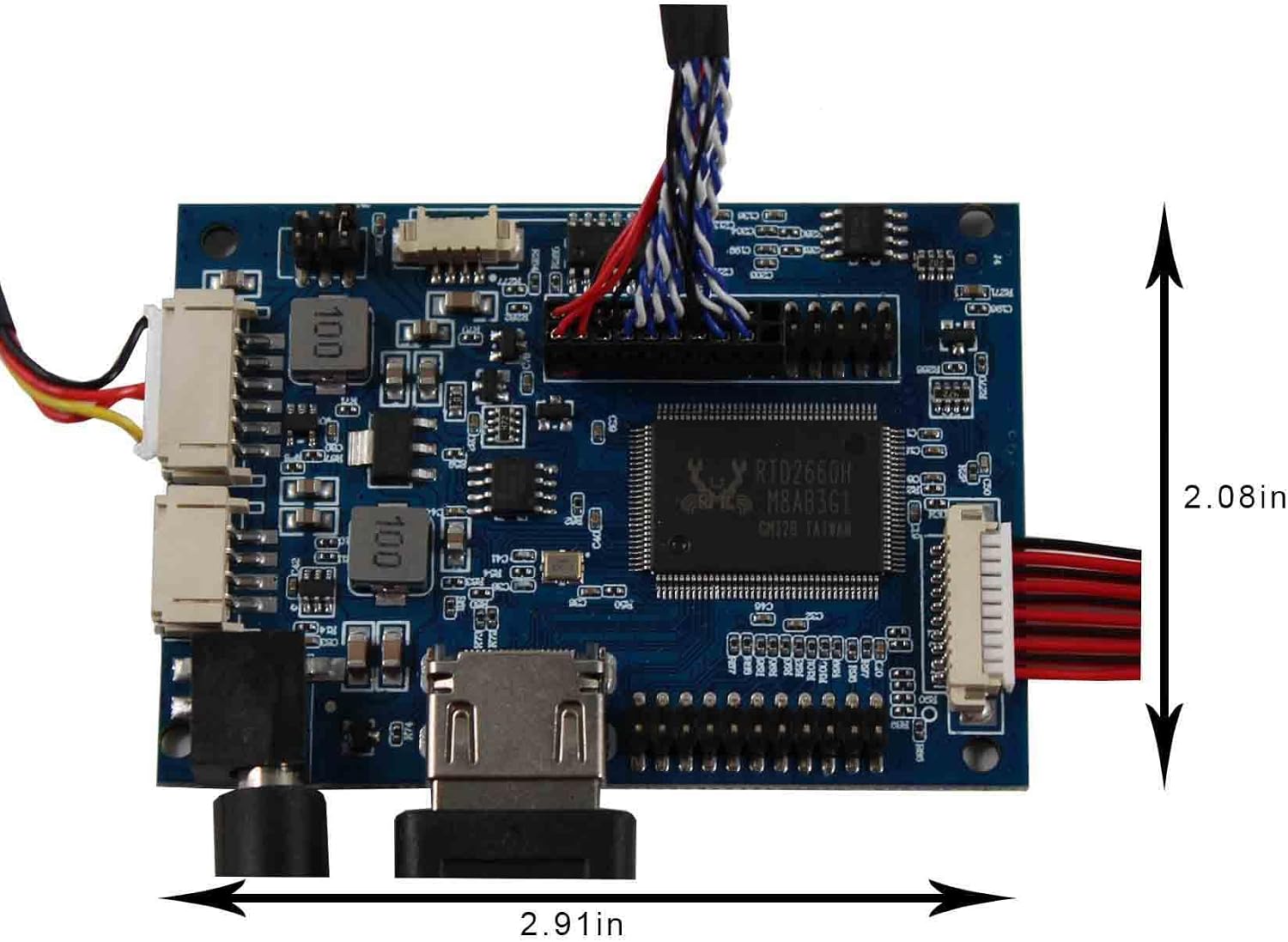

LCD Controller Board: LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 5A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: Audio Input: Audio Output: Speaker (4Pin PH1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm
10.4' VS104T-004A 1024X768 LCD Screen:Replacement screen for G104XVN01.0, G104X1-L03 Display Mode IPS Pro, Normally Black, Transmissive Resolution 1024×768Outline Size 227.00 × 175.8×7 (H×V×D)mmDisplay Area 210.43 × 157.824 (H×V)mmBrightness 600 cd/m² (Typ.)Contrast Ratio 1000:1 (Typ.) (TM)Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left/Right/Up/Down]Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pinsBacklight WLEDInput Voltage 3.3V (Typ.)

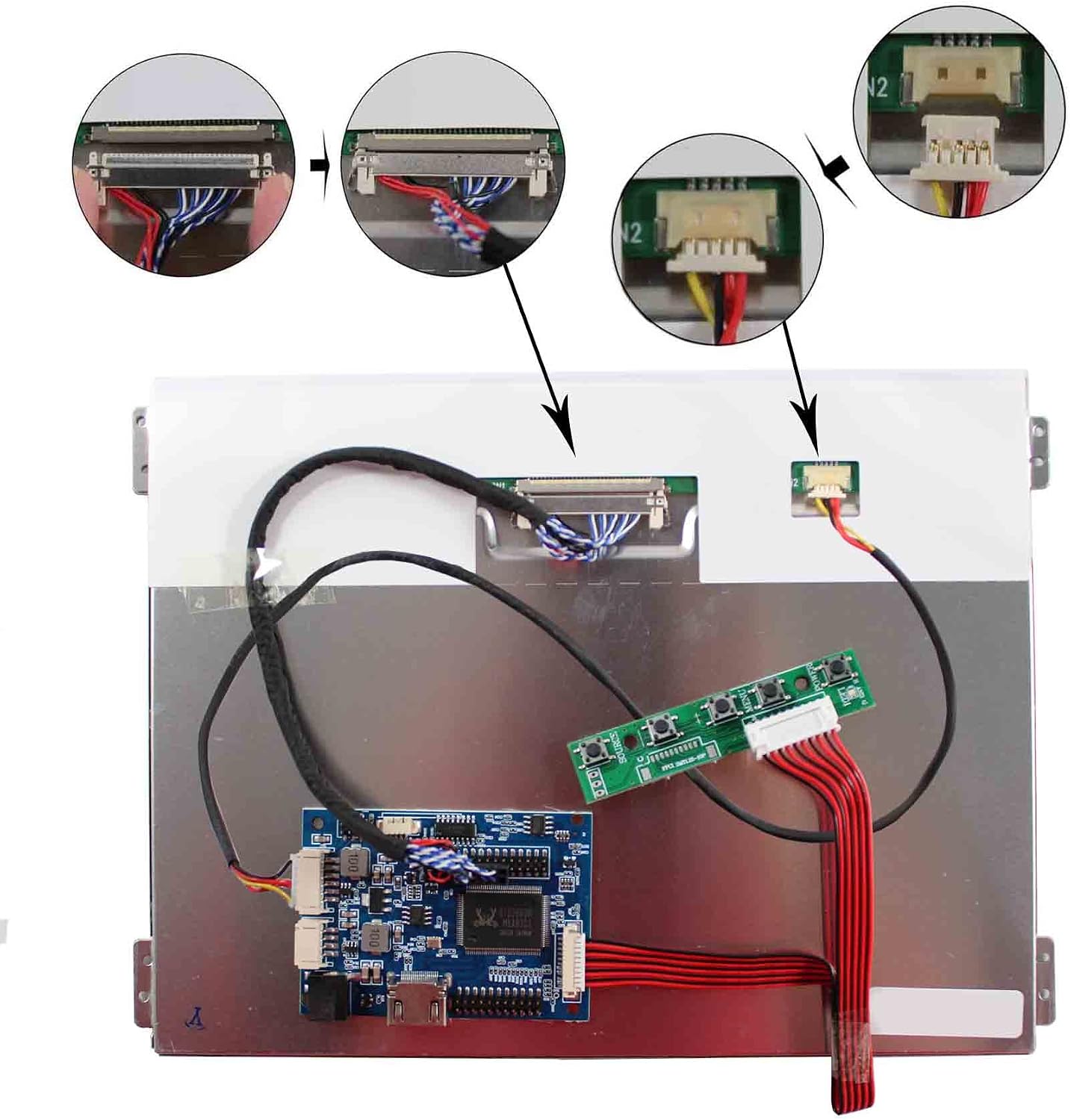

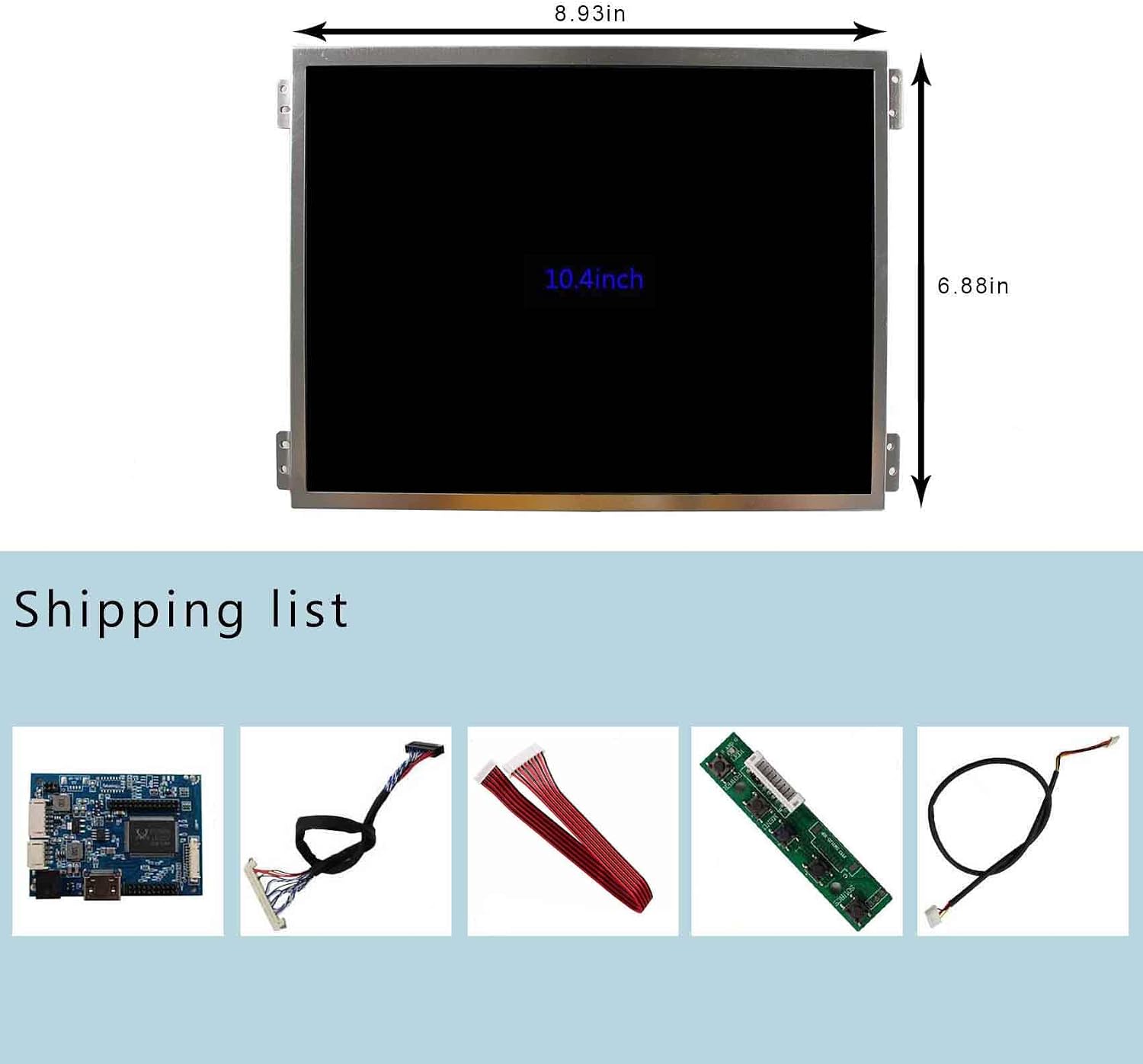

Packing list :1× Audio LCD Controller Board VS-TY2660H-V6611×10.4inch VS104T-004 1024X768 LCD Screen1× LVDS Cable1× Backlight Cable1× Keyboard With Cable

Additional details

• Additional Features : 10.4 Inch IPS 1024x768 LCD Screen 600Nits, Wall Mountable
• Color : 10.4' LCD + VS-TY2660H-V661 Board
• Mounting Type : Wall Mount
• Specific Uses For Product : Multimedia/Personal/Gaming/Business

Connectivity

• Hardware Connectivity : Unknown

Display

• Aspect Ratio : 4:3
• Brightness : 600 Candela
• Contrast Ratio : 1000:1
• Display Technology : LCD
• Display Type : LCD
• Has Color Screen : Yes
• Refresh Rate : 60 Hz
• Screen Finish : Matte
• Viewing Angle : 80 Degrees

Display Resolution

• Display Resolution Maximum : 1024 x 768
• Native Resolution : 1024×768
• Resolution : XGA

Item details

• ASIN : B09JJN818R
• Brand : VSDISPLAY
• Manufacturer : VSDISPLAY
• Model Name : K003127
• Model Number : K003127
• UPC : 601285623153

Measurements

• Item Dimensions D x W x H : 0.28'D x 8.66'W x 6.69'H
• Item Weight : 0.66 Kilograms
• Screen Size : 10.4 Inches

Performance

• Response Time : 8 Milliseconds

Power

• Power Consumption : 24 Watts
