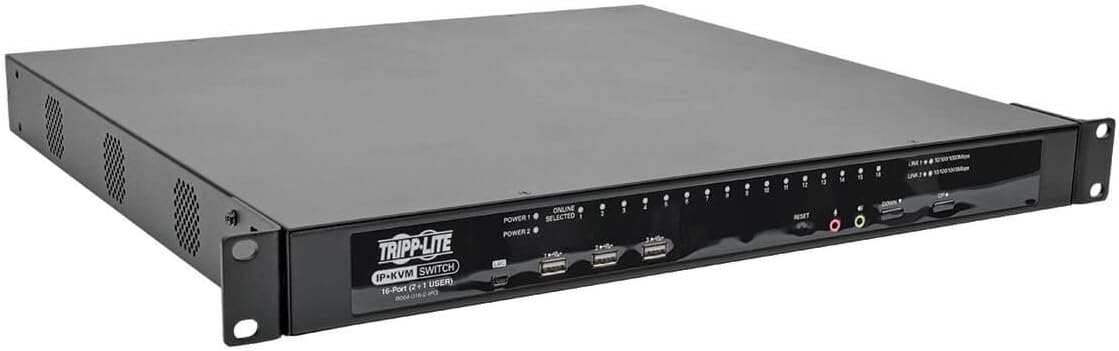

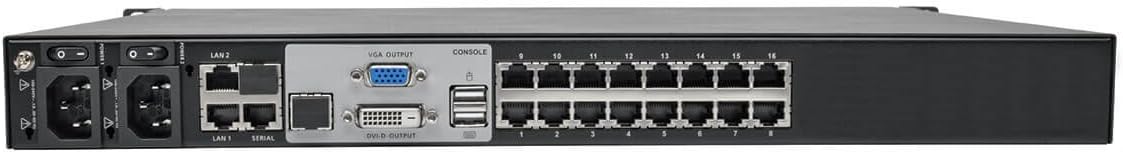

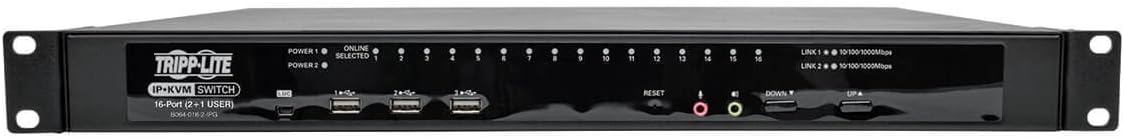

Tripp Lite NetDirector 16-Port Cat5 IP KVM Switch 1U Rack-Mount 2+1 Us

Tripp Lite NetDirector 16-Port Cat5 IP KVM Switch 1U Rack-Mount 2+1 User (B064-016-02-IPG)

$792.10 $2,189.22

Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft. (50 m). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
Tripp Lite's B064-016-02-IPG NetDirector� 16-Port Rackmount Cat5 IP KVM Switch is the smart solution for controlling multiple computers and servers in complex, demanding IT environments. Requiring just 1U of rack space, the B064-016-02-IPG features a rugged housing, premium connectors and superior functionality to ensure trouble-free operation in demanding high-availability environments. The B064-016-02-IPG can control sixteen servers/computers directly, or up to 256 by cascading additional KVM switches. It is compatible with both PS/2 and USB connections using Tripp Lite B055-001-Series server interface units and inexpensive Cat5 patch cables (available separately). Redundant dual power supplies assure that the B064-016-02-IPG will continue running if the primary power supply fails. Built-in IP capability enables one local and two remote users to access the network independently and simultaneously.The B064-016-02-IPG offers a comprehensive, cost-effective network management solution that installs in 1U of rack space. No server-resident software is required, so server performance and reliability are never compromised. Flash-upgradable firmware fine-tunes compatibility with emerging standards.The B064-016-02-IPG supports both PS/2 and USB connections (Tripp Lite B055-001-Series server interface units and Cat5 patch cables required; sold separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. The B064-016-02-IPG is compatible is compatible with all major operating systems.The B064-016-02-IPG is designed to ease multi-server management in data centers, server rooms and other high-density environments. Its built-in IP capability enables one local and two remote users to access the network independently and simultaneously. An optional dial-in connection is provided to assure access in situations when the KVM switch is not available over the primary network. An advanced on screen display (OSD) with high-resolution video up to 1600 x 1200 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. The OSD may be set to display in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.The B064-016-02-IPG is capable of controlling up to 256 servers/computers by cascading additional B064-016 KVM switches. This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.The B064-016-02-IPG offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Remote authentication support is provided via RADIUS, LDAP, LDAPS and Active Directory. The B064-016-02-IPG also incorporates advanced encryption technologies: 1024 bit RSA; 56 bit DES; 256 bit AES and 128 bit SSL.The B064-016-02-IPG's Virtual Media capability allows any computer connected to the KVM via a B055-001-USB-V2 server interface unit to access DVD/CD drives, flash drives and other storage media anywhere on the network, as if they were directly connected to the computer. Three USB ports on the front panel of the switch are provided for connection of USB peripheral devices.The B064-016-02-IPG features built-in temperature sensors that automatically increase or decrease the speed of the unit's fans as necessary to assure efficient cooling. This decreases the amount of energy consumed while prolonging the life of the fans and switch.The B064-016-02-IPG comes with a 3-year warranty. For government purchasers, it is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.To connect servers/computers to the KVM: one Tripp Lite B055-001-Series server interface unit and one Cat5 patch cable per server/computer are required (see below). To enable Virtual Media capability: one B055-001-USB-V2 server interface unit and Cat5 patch cable per computer to be enabled. To cascade from the B064-016-02-IPG: additional B064-016 KVM switches, server interface units and Cat5 cables; consult the owner's manual for detailed information about cascade configurations.Tripp Lite UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection and connectivity solutions for all electronics.Converts the PS/2 and monitor ports on a server/computer to a single RJ45 connector, permitting inexpensive Cat5e patch cables to be used to connect the server to a Tripp Lite Cat5 multiuser IP KVM switch. Enables servers/computers to be sited up to 130 ft. from the KVM. Compact, lightweight design. No special software or external power supply required. 1-year warranty.Converts the USB and monitor ports on a server/computer to a single RJ45 connector, permitting inexpensive Cat5e patch cables to be used to connect the server to a Tripp Lite Cat5 multiuser IP KVM switch. Enables servers/computers to be sited up to 500 ft. from the KVM. Compact, lightweight design. No special software or external power supply required. 1-year warranty.Enables serial devices to be controlled through a Tripp Lite Cat5 multiuser IP KVM switch using inexpensive Cat5e patch cables to connect the serial device to the KVM. No special software or external power supply required. Supports VT100 serial emulation. 1-year warranty.Provides a complete network control system in just 1U of rack space. The B021-000-17 includes a keyboard, 17-in. LCD screen and touch pad in a 1U slide-out unit, and is compatible with any KVM switch or server equipped with PS/2 connectors. 1-year warranty.Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.

Additional details

Color : Black

Features & Specs

Actuator Type : Touch Switch
Circuit Type : 16-way
Compatible Devices : Computers with PS/2, USB, and Serial ports, and VGA monitors
Connectivity Protocol : Vga
Connector Type : Usb
Contact Type : Normally Open
Control Method : Remote
Control Type : Remote and Local
Mounting Type : Rack Mount
Number of Positions : 1
Operation Mode : Automatically
Smart Home Compatibility : Not Smart Home Compatible
Switch Type : MOSFET
Terminal : Through Hole

Item details

ASIN : B0036RHBMO
Brand Name : TRIPP LITE
Global Trade Identification Number : 00037332151513

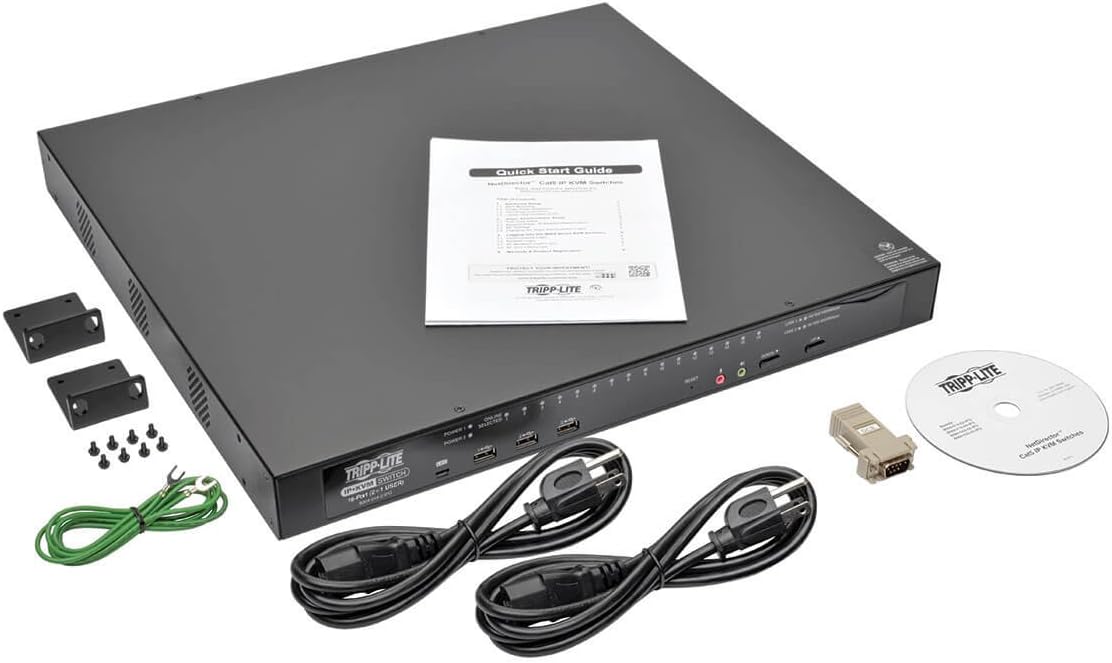

Included Components : 16-Port Cat5 1+1 User 1U Rack-Mount VGA USB KVM Switch with IP Remote Access; C13 to 5-15P Power Cord; Rack-Mount Hardware; CD with Owner's Manual; Quick Start Guide
Item Weight : 18.85 Pounds
Manufacturer : TRIPP LITE
Model : B064-016-02-IPG
Part Number : B064-016-02-IPG
UPC : 037332151513 151903014691
Warranty Description : 3 year limited warranty
